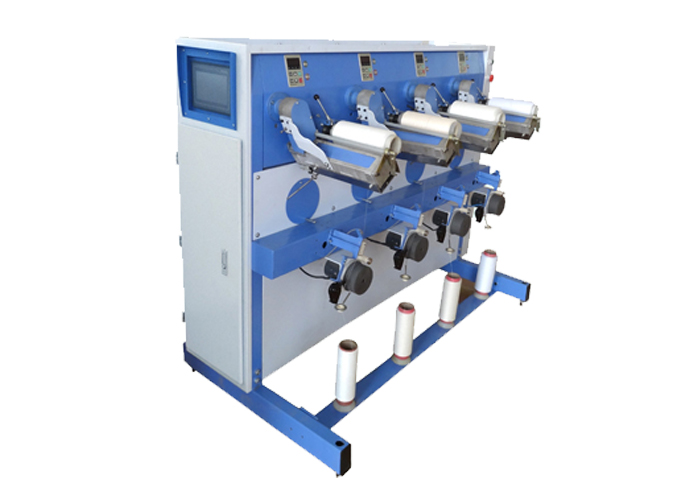

JM0603 precision winder is a new loose winder launched by our company. It is specially used for chemical filament below 600D for package dyeing. The effect of fine denier fiber and super fine denier fiber is better
The machine is simple in structure, solid and beautiful in shape. The online tension control system is adopted to achieve the best coordination in the key indicators such as winding speed, tension, pressure and overfeed of the barrel yarn, and to a greater extent, ensure the accurate package density of the barrel yarn, with a winding speed of 700m/min. The whole machine adopts sophisticated machining parts and high-quality electrical components, which ensures the stability of the machine operation, changes the yarn channel, and also changes the way of applying pressure and winding method to adapt to high-speed winding. The application of precision winding technology and humanized design concept minimize the cost of operation, maintenance, repair and energy conservation
Main specifications and technical features:
Winding form: precision winding (equal pitch winding)
Mechanical speed: 700m/min
Coiling shape: straight cylinder, with both ends hemmed
Winding diameter: 210mm at most
Coiled bobbins: parallel
Arrangement: single machine, 4 spindles for each group
Spindle spacing: 360mm
Operating height: 1000mm& nbsp;
Yarn feeding mode: lower feeding
Drive: single spindle, single motor, single frequency conversion control
Power: installed power 180W (single ingot)
Transverse length: 125-150mm, 175-210mm
Applicable materials: chemical filament, silk, viscose rayon and thread, etc
